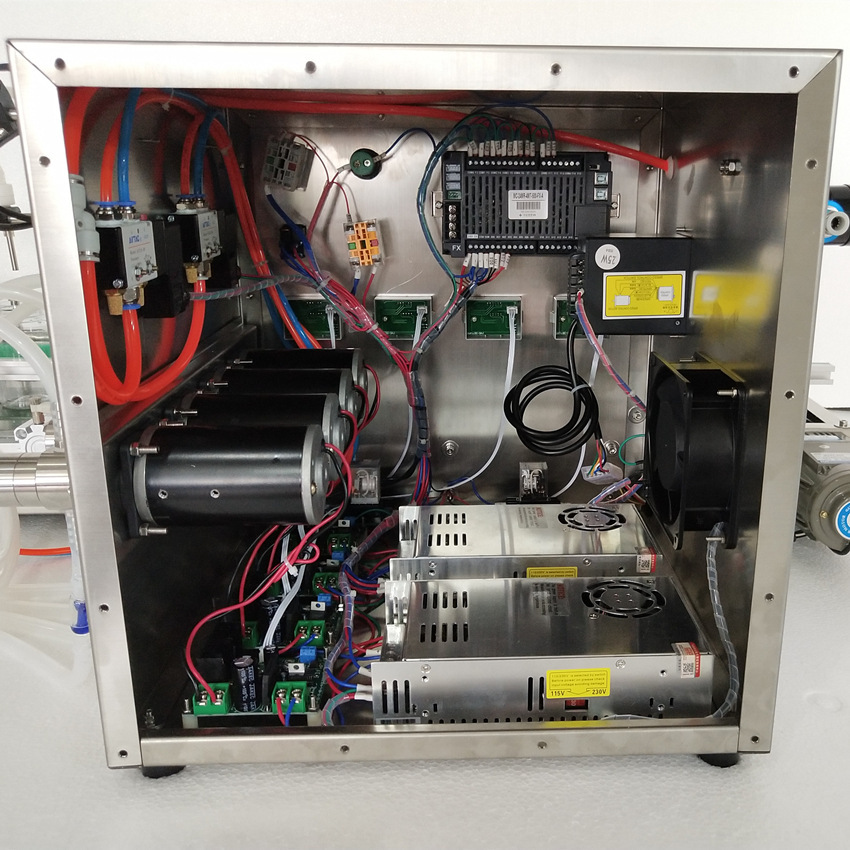

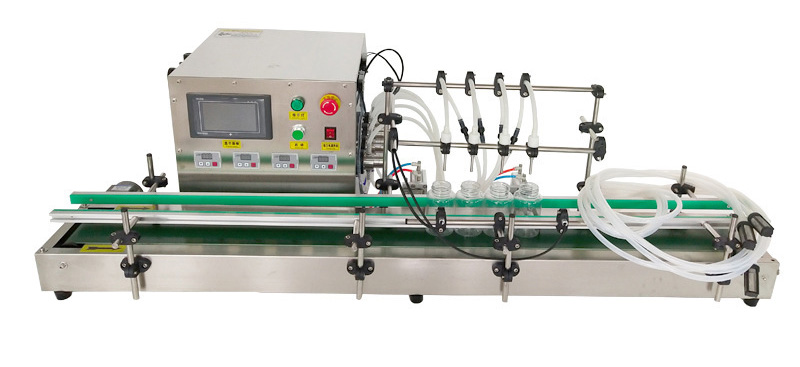

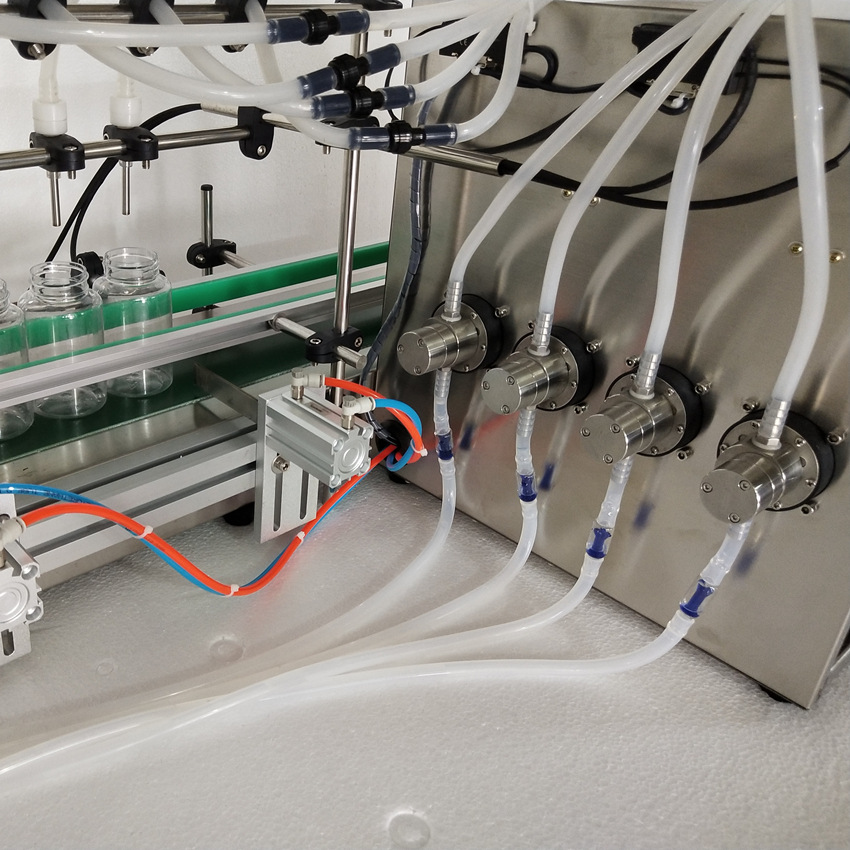

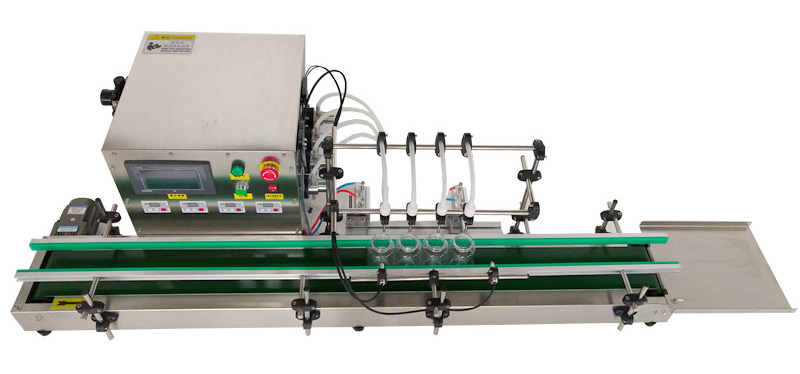

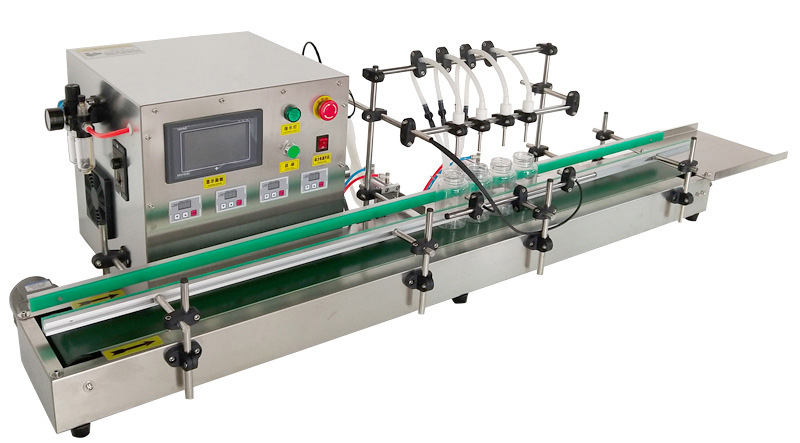

This machine is a desktop four head full-automatic magnetic pump filling machine, which can automatically detect, fill and divide bottles with conveyor belt. The main structure of the machine is composed of PLC integrated machine control module, power module, filling drive module, conveying module, four magnetic pump components, relay components, solenoid valve components and pneumatic control components, photoelectric sensor components, etc. It is a new type of filling equipment that uses high-precision micro magnetic pump, motor speed and pump working time to measure the filling volume. The pump head is made of 316L, which is acid and alkali resistant and corrosion-resistant. It is widely used for filling almost all liquid that can flow, especially for filling oil, washing liquid, acid and alkali liquid and highly corrosive liquid. It has compact structure, high filling precision and automation, convenient operation, and is suitable for the filling of various dosage products in mass production. It can meet the requirements of 5ml-4500ml filling capacity, and is suitable for various specifications of bottle filling. It is a reliable and durable filling equipment. The pump head and gear are made of original imported materials, using high-definition touch screen PLC program as the control unit, cooperating with multiple sets of motor speed regulating templates and relays for independent control. The electrical components are produced by domestic well-known manufacturers, with stable and reliable performance and long service life. The magnetic pump head is driven by magnetic force, and there is no shaft connection between the pump head and the motor, so there is no need to worry about the damage and leakage of the shaft seal or the high load of the pump The filling time is accurate to 0.01 seconds, so as to ensure the filling accuracy and adjust the filling flow. The machine has complete functions and can be equipped with assembly line operation.
Technical parameter
Power supply voltage: AC220 V / 50 Hz, 60 Hz
Rated power: 420W
Gas source pressure: 0.4-0.6mpa
Filling speed: 20-40 bottles / min
Filling range: 5ml-4500ml
Filling accuracy: ± 1%
Filling flow: 4.5l/min
Applicable bottle height: 50-300 mm
Number of filling heads: Four
Counting function: automatic counting
Operation mode: man machine integrated touch screen control
Conveying speed: 0-10 M / min
Suction head: 3M
Power off memory: Yes
Cooling mode: air cooling
Host size: 1500 * 750 * 430mm
Weight: 50kg
