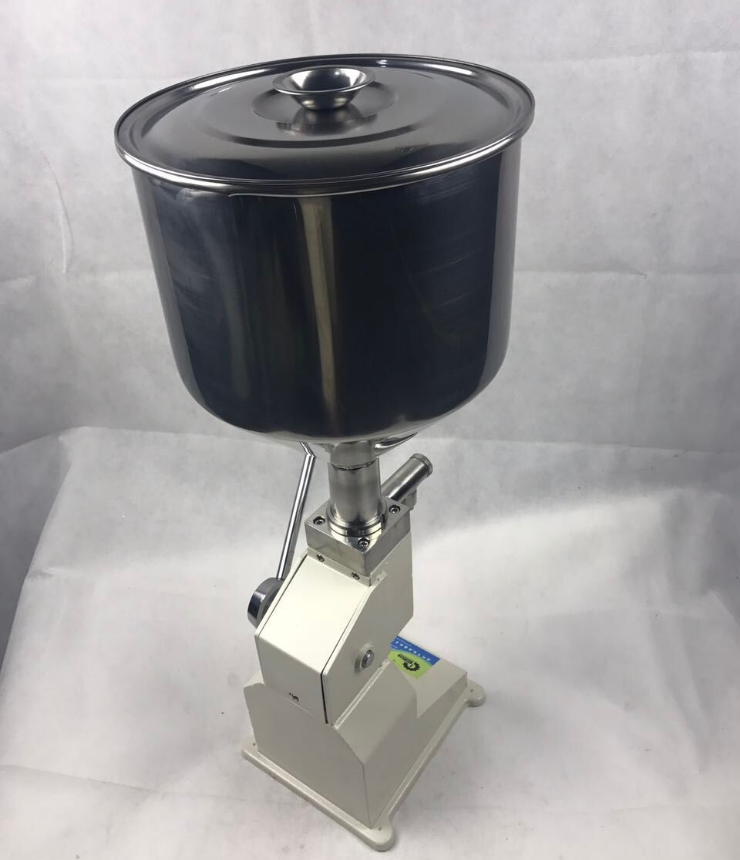

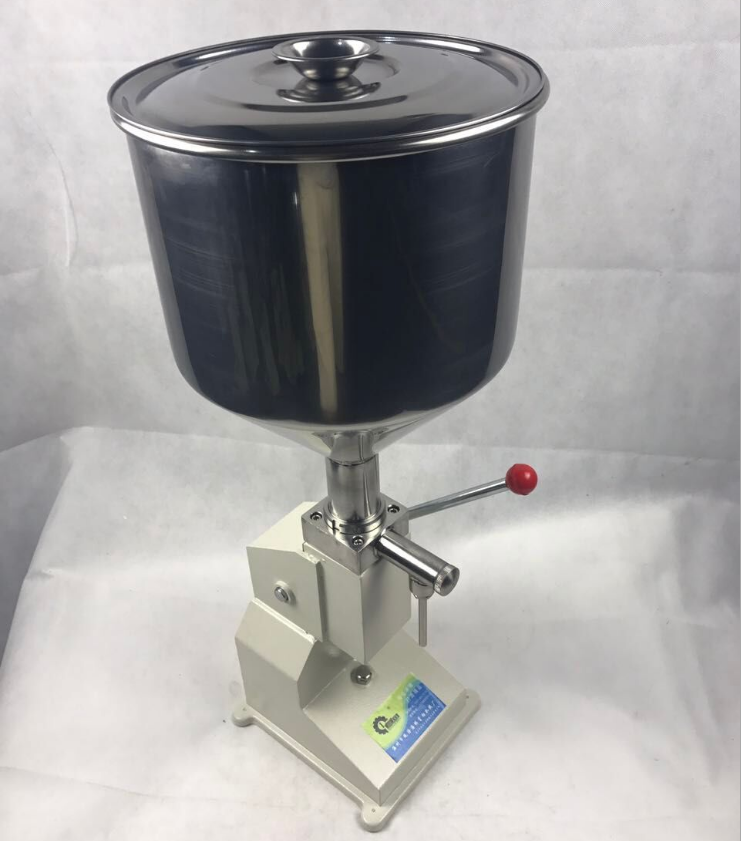

A03 Manual Filling Machine for production of cream & sha

A03 series manual filling machine adopts a piston type structure, the liquid, paste and other materials for 0-70 g quantitative filling. Filling of liquid, liquid food, oil, shampoo, shampoo cream liquid substance, with paste liquid filling machine function. Applicable to the pharmaceutical, cosmetic, food, pesticides and special industries, and also can be used for sealing the hose has the quantitative filling, is the ideal paste liquid filling equipment.
FEATURES The machine is simple and reasonable structure, easy manual operation, .
There filling quantity adjusting device knob, can quantitative discharging, filling volume and filling speed can be controlled manually.
Material contact parts are made of 316L stainless steel, suitable for use under acid medium,
with food, medicine and production hygiene requirements.
The hopper capacity of 10L, users may need to be set on the filling volume

Technical parameters
Work mode: Manual
Working speed: 20-30 beats / min
Filling range: 0-50ml (external knob, adjustable)
Filling accuracy: ± 1%
Hopper capacity: 10L
Filling nozzle diameter: 4mm and 8mm

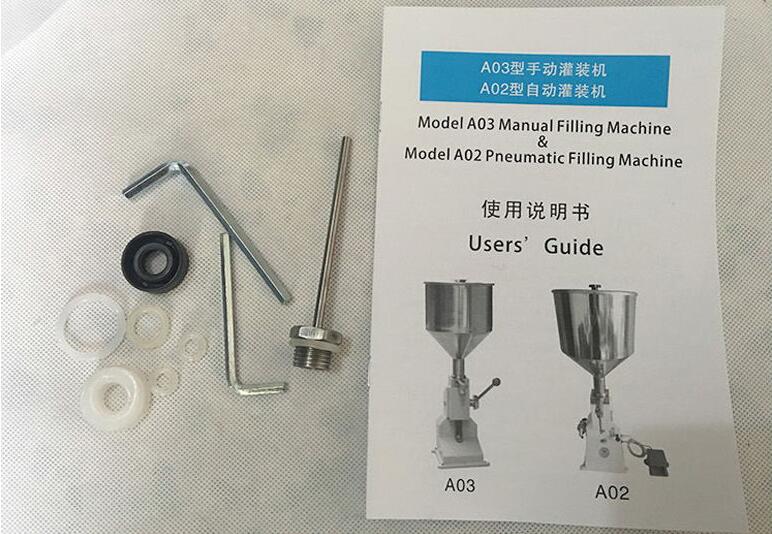

Delivery machine configuration 2 nozzle (diameter 4mm and 8 mm)

PACKAGE SIZE:36*36*78CM WEIGHT:15KG
