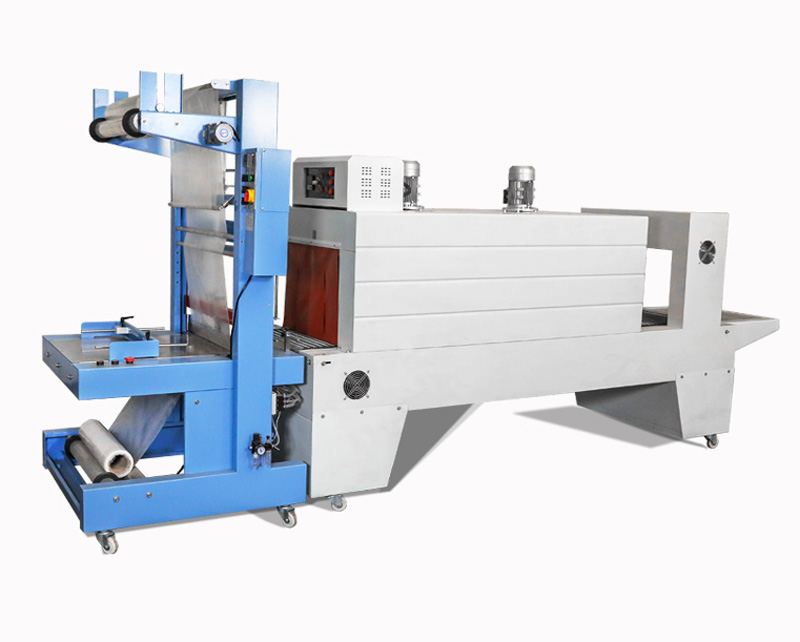

FL7540 semi-auto sleeve wrapper and BSE5040A shrink tunnel

FL7540 semi-auto sleeve wrapper and BSE5040A shrink tunnel

Share to:
    Payment Type:  FOB CIF, CFR, DAP
    Incoterm:  FOB CIF, CFR, DAP
    Min. Order:  1
    Delivery Time:  3 DAYS

Product Description

Summarize:
FL-7540 series  semi-auto sleeve wrapper is suitable for wrapping pop-cans, bottles etc.It works with PE shrink tunnels.
The machine adopts the Germany advanced technology and international famous brands, which makes capability stable and using long-time.
Characteristic:
1.     Up and down magnetic switch prevent sealing mistakes, and protect the operators.
2.     The input position is adjustable, base on the size of products packaged.
3.     Intelligent temperature controller performs stable.
4.     Large power conveyer motor, with stepless speed regulating, ensures smooth feeding.
5.     Up and down large power fan system ensures the excellent effect of shrinking in one time.
6.     Super cooling system cools the packing and makes the figuration perfectly.
7.     The size of tunnel can be customized as your request.

Specification:
Model  FL-7540(Pneumatic) Model BSE5040A
Power supply AC 110-220/50-60Hz 1.5kw Power supply 3phase 220V/380-460V 50-60HZ
Capacity 5-8pcs/minute Heater power 20KW Adjuster
Sealing time/shrink time  0.5-1.5s, 0-0.6s Conveyer speed 0-10m/minute
Conveyor loading  25kg Tunnel size(L*W*H) 1500*500*460mm
Film width Max. 500mm Conveyer loading 30Kkg MAX.
Film thickness 0.03-0.25mm Shrink film PE,POF,PVC,PP
Max. packing dimension(L*W*H) 650×400×380 Machine weight 470KG
Machine size(L*W*H) 925×1040×1920 Machine size 2500*820*1680mm
