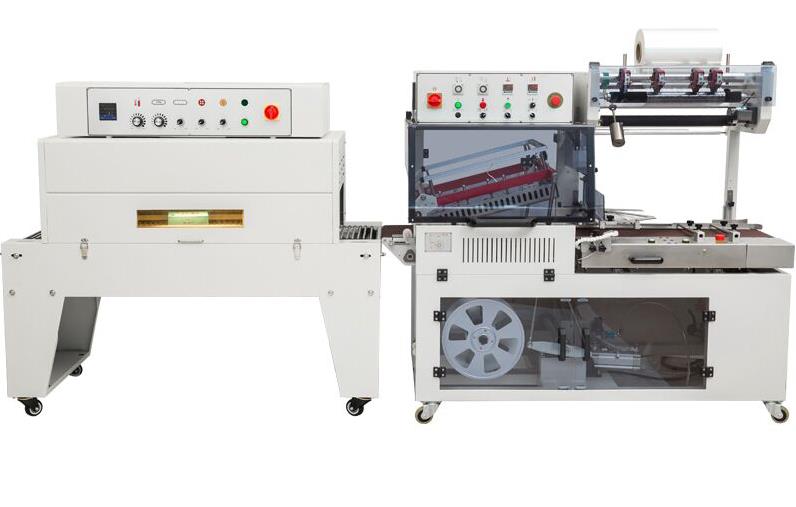

DQL5545S Automatic L-type sealer &DSD4520 shrink tunnel

DQL5545S Automatic L-type sealer &DSD4520 shrink tunnel

Share to:
    Payment Type:  CIF CFR FOB
    Incoterm:  CIF CFR FOB
    Min. Order:  1
    Delivery Time:  10 days

Product Description

DQL5545S Automatic L-type sealer &DSD4520 shrink tunnel
This set machine can seal & shrink the film around perfectly.
This machine is widely used in foodstuff, drinks, printing, pharmaceutical, floor, hardware and other industries shrink packaging. It is suit POF, PE, PVC and other packaging material
 QL5545S Automatic L-type sealer
1. The sealing knife adopts copper alloy sprayed with Teflon, it won't stick film, sealing fastness, without smoke, non-pollution.Horizontal and vertical sealing knife adopt whole connecting without gap in arc-shaped, the film won't break.
² The machine has entire automatically system, it equipped with “Panasonic” sensors can reach high speed automatically working.

² It is convenient to adjust according to different sizes products, just adjust the handle wheel can reach it, operation is easy.
² “Omron” programmable logic controller (PLC),
² “Omron” temperature controller ensure sealing temperature error and “Omron” delay control sealing time accurat
² International advanced perforating device design ensure stable working

² “Airtach” air filter to ensure enough air source for machine
² Large waste film collect device can make machine continuous working in long
² Cylinder equipment
² Optional device: conveyor connecting function can work with very small product
 DSD4520 shrink tunnel characteristic:
1 It adopts Schneider AC contactor, high-power Solid-state booster and intelligent temperature controller to make temperature system more accurate, prolong the working life.
2 It adopts solid roller conveyor, the rollers wrapped with high temperature silica gel tube. It can stand heavy product and difficult abraded (you can choose net type conveyor)
3 It adopts high-power fan motor to ensure enough strong wind to reach perfect packing effect.
4 Inside wall adopts stainless steel; it has fast temperature transfer, even heating, low energy consumption, long working life characteristics.
optional items:
1 inlet conveyor
2 connecting device (for packing small products)
Model DQL5545S DSD4520
Horizontal heat power 1100W Power : 12.8kw
Vertical heat power 800W /
Voltage 220V 50/60HZ 380V 50HZ/60HZ
Sealing time 0.2-1.0s /
Thickness of film 0.012-0.06mm Machine sie :
Compressor of work 5-6mpa
Max packing size L+2H≤550mm;W+2H≤350mm;H ≤140mm
Max sealing size L550×W450 Loading weight: 10kg
Capacity 0-25 pcs/min 0-10 m/min
Sealing temperature 180℃—250℃ depends on thickness of film and environment temperature /
Packing material PE POF PVC /
Machine weight(kg) 320 180kg
Machine size(mm) 1760*940*1580mm External L1600×W719×H1440
