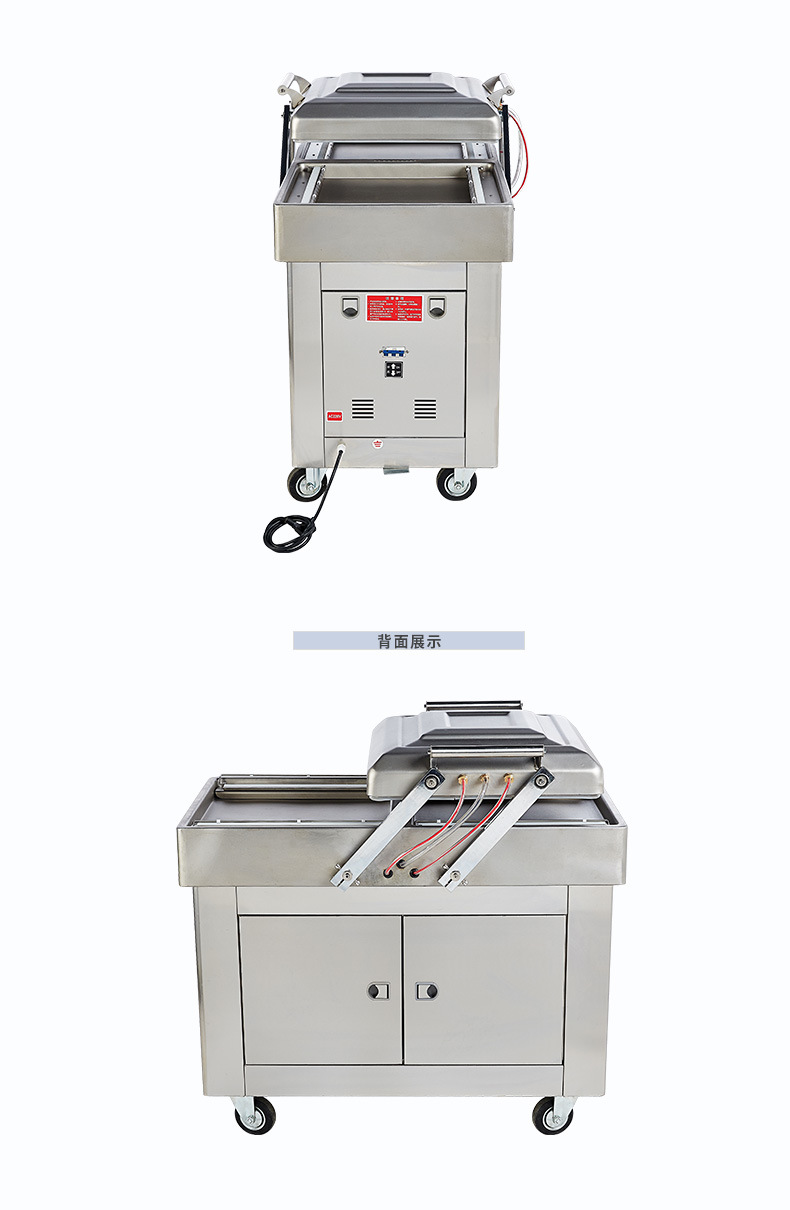

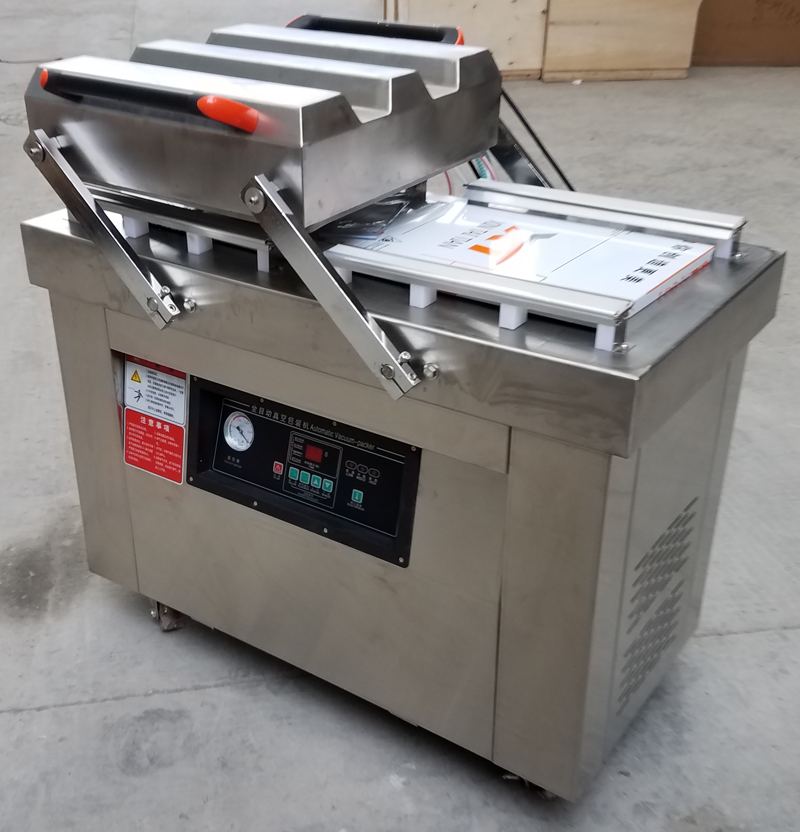

DZ 400/500/600 Automatic Large double chamber vacuum packing

DZ 400/500/600 Automatic Large double chamber vacuum packing

Share to:
    Payment Type:  FOB CIF, CFR, DAP
    Incoterm:  FOB CIF, CFR, DAP
    Min. Order:  1
    Delivery Time:  3 DAYS

Product Description

Vacuum Chamber machines or Vacuum packaging machines are used to evacuate the air around perishable goods such as food products like cheese and meat whose extension of shelf life is desired. It remove the air from the package at the same time sealing it, delivering the ultimate in protection while extending the distribution life and maintaining product integrity.
Work Process:
Vacuum sealers or Vacuum chamber machines commonly use vacuum bags or barrier pouches. These barrier bags provide a barrier against the atmosphere and moisture. The bags are placed in the chamber, the desired amount of air is extracted from the vacuum bag and then sealed. All of Get packed Vacuum Chamber machines are made from stainless steel and are available in a variety of sizes and configurations such as the option of gas flushing kits.

Parameter of Automatic Double Chamber Vacuum Packing Machine

Model DZ-400/2SB DZ-500/2SB DZ-600/2SB
Voltage AC 380V/50Hz   220V/60Hz 220V-380V/50HZ 220V-380V/50HZ
Pump power 900W 1500W 2250W
Heat-sealing power 800W 1170W 1170W
Lowest absolute pressure 0.1pa 0.1pa 0.1pa
Vacuum chamber size 400×400×110mm 565*525*160mm 670*525*160mm
Sealing strip size 400*10mm 500*10mm 600*10mm
Number of heater 2 2 2
Exhaustment of vacuum pump 20m³/h 40m³/h 60m³/h
Material of vacuum case and hull 304 stainless steel 304 stainless steel 304 stainless steel
Dimension 9900*540*910mm 1255*610*960mm 1460*610*960mm
Weight 130kg  150kg 180kg
